Microsoft Outlook 2007

This page explains how to set up Microsoft Outlook 2007 to send and receive e-mail for a POP mailbox that you've created.

Before you continue, you should enter your e-mail address (the address you want to set up in Microsoft Outlook) in the box above. Entering your e-mail address makes sure that the instructions below are correct.

Tip: make sure that the program you are using is Microsoft Outlook, and not Microsoft Outlook Express. These two similarly named programs have different set up instructions. Be sure you do not see the word "Express" on the screen when you start the program. (If you're using Outlook Express, see this page instead.)

Setting up Microsoft Outlook 2007

The instructions below will explain in detail how to fully configure Outlook 2007. This will involve the following steps:

Create a new POP3 account
Set both the "E-mail Address" and the "User Name" to your e-mail address. (The user name must be all lower case.)
Set both the "Incoming" and "Outgoing" server names to mail.tigertech.net
Turn on the "My outgoing server (SMTP) requires authentication" checkbox
Change the "Outgoing server (SMTP)" port number to 587

1. Start the Microsoft Outlook program.

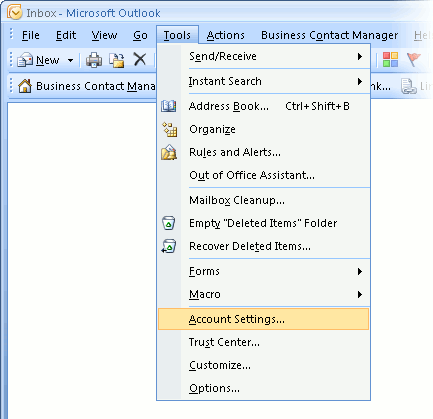

You can use the Start menu to start Outlook 2007. When it opens, click Tools, then Accounts Settings from the menu bar:

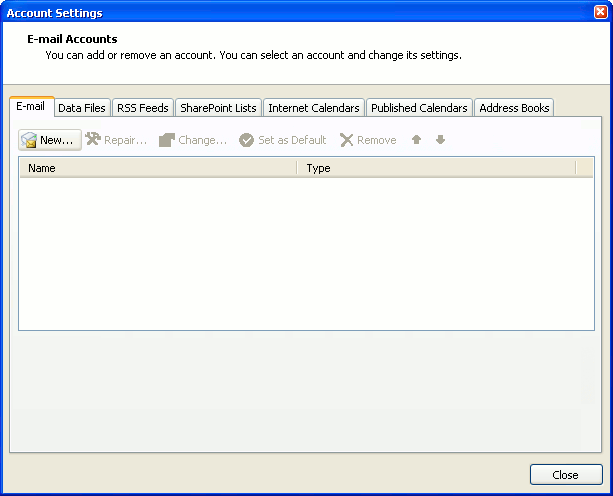

2. The "Accounts Settings" window appears.

Make sure the E-mail tab is selected, then click New.

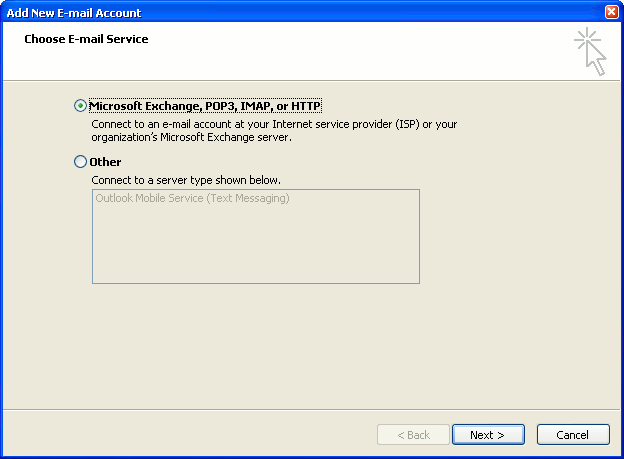

3. You are asked to choose the E-mail Service.

Choose Microsoft Exchange, POP3, IMAP or HTTP, then click Next.

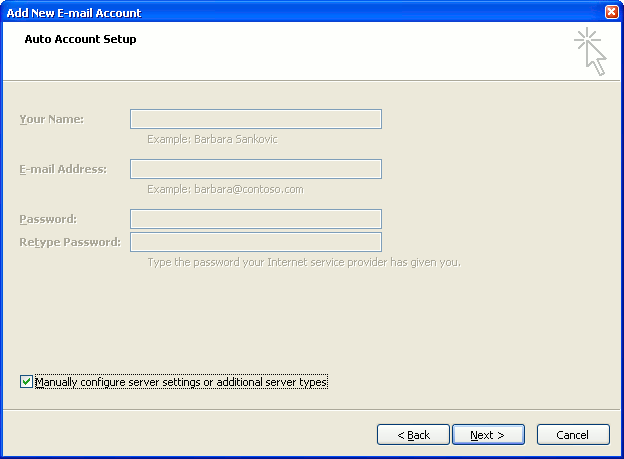

4. The "Auto Account Setup" screen appears.

When this window appears, simply leave the fields empty, check the Manually configure server settings or additional server types checkbox, then click Next.

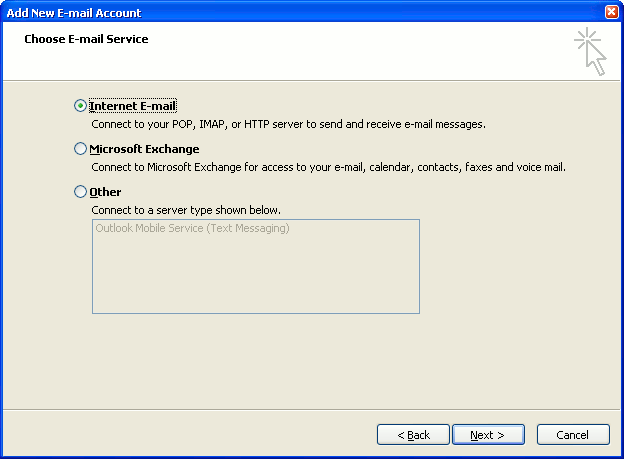

5. The "Choose E-mail Service" screen appears.

Choose Internet E-mail, then click Next.

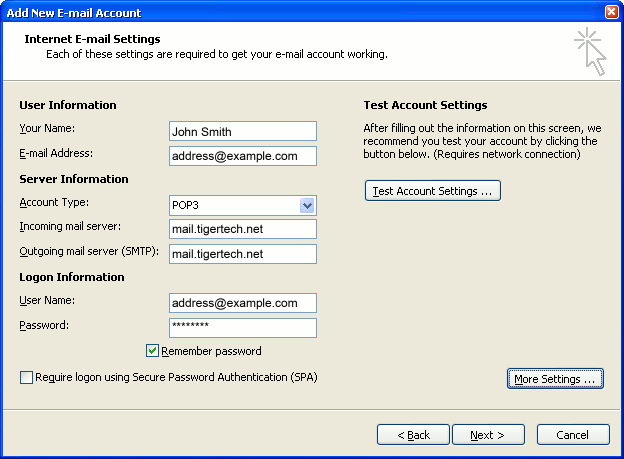

6. The "Internet E-mail Settings" screen appears.

This is the window where you'll enter most of your account settings. You want the window to look like this:

"Your Name" is the name that other people will see when you send them e-mail. It should usually be your real name, such as John Smith or Joan of Arc.

Enter your "E-mail Address". The address must be the e-mail address of the POP mailbox you created in your account management control panel.

For Account Type, choose POP3.

Enter mail.tigertech.net for both the "Incoming mail server" and "Outgoing mail server (SMTP)".

Enter your e-mail address again as the "User Name". (The user name must be all lower case).

Type your e-mail password into the "Password" box. This is the password you chose for this e-mail address when you created the mailbox in your account management control panel. Remember that this password may be different from your master account password. You can also check Remember password if you don't want Outlook to ask you for the password each time you read e-mail.

Make sure that "Require logon using Secure Password Authentication (SPA)" is not checked.

Do not click "Test Account Settings" yet; it will not work until you complete the next steps.

7. Click the "More Settings" button.

A new "Internet E-mail Settings" window appears.

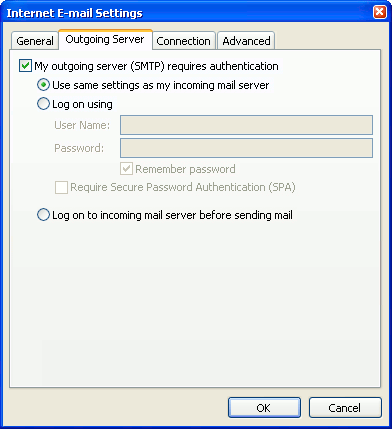

8. Choose the "Outgoing Server" tab.

In the "Outgoing Server" tab, check My outgoing server (SMTP) requires authentication.

Select Use same settings as my incoming mail server.

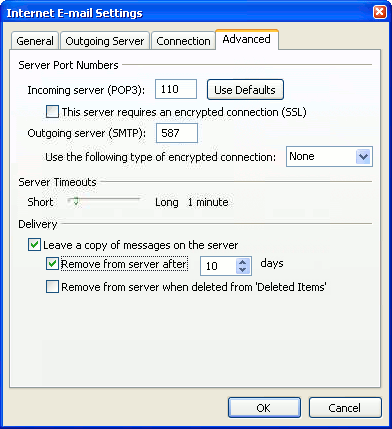

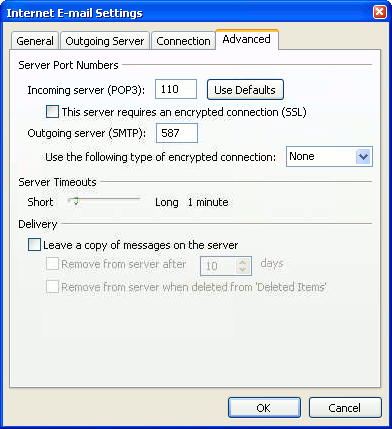

9. Choose the "Advanced" tab.

Click the "Advanced" tab and change the "Outgoing Server (SMTP)" port number to 587. Doing this makes sure that your ISP will not block your outgoing mail connections.

10. Click OK to close the "Internet E-mail Settings" window.

After you close the "Internet E-mail Settings" window, the "Add New E-mail Account" screen will still be visible.

11. Test the settings.

Click Test Account Settings. Outlook will usually tell you that "all tests completed successfully".

If Outlook tells you a test failed, double-check to be sure you've entered the settings correctly.

If Outlook still tells you that a test failed, we recommend continuing anyway. This is because some software on your computer (including Norton Antivirus) can make the "Test Account Settings" feature fail, even when Outlook is correctly configured. In most cases, Outlook will work properly when you try sending real messages.

If the "Test Account Settings" window is still open, close it to continue.

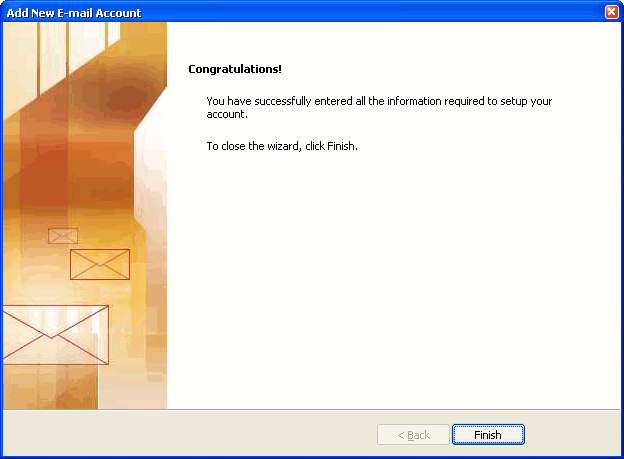

12. Finish the wizard.

Click Next, then Finish.

Outlook setup is complete

You're finished! Try sending yourself a test e-mail message to make sure it works.

Optional additional steps: secure SSL / TLS connections and leaving copies of mail on the server

Some customers may also wish to turn on secure connections in Outlook. This makes e-mail connections more secure, but may not work on some computers. If you want to do this, see the topic SSL / TLS Encryption for Outlook 2007 for more information.

Finally, if you read e-mail in more than one program, you may want to leave a copy of each read message on the server.
